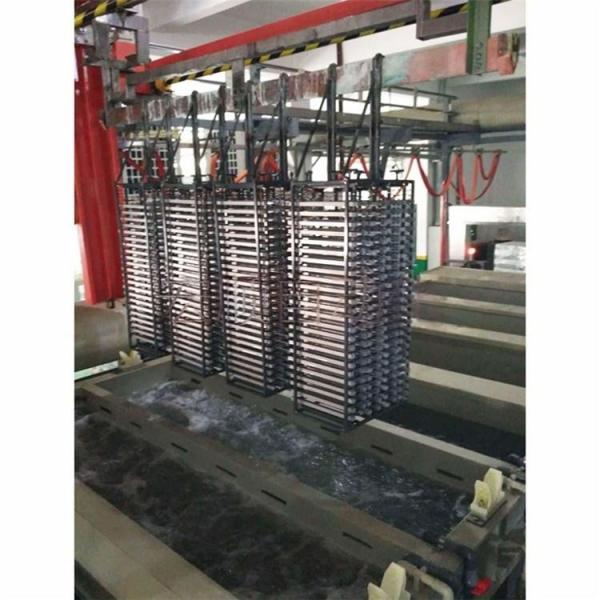

Decorative Automatic Anodizing Production Line With Dyeing System

Automatic Anodizing Production Line Overview:

This fully automated anodizing production line is engineered for decorative applications, combining precision oxidation with integrated dyeing capabilities. Ideal for aluminum components in consumer electronics, bathroom fixtures, and architectural elements, the system uses a sulfuric acid anodizing process to create a smooth, corrosion-resistant oxide layer. The built-in dyeing system supports vibrant color customization—from matte pastels to glossy metallics—with automated color matching and temperature control for consistent results. Equipped with PLC programming, the line minimizes manual intervention, ensuring high efficiency and reduced energy consumption. Its modular design allows easy integration of sealing units for enhanced durability, making it a versatile solution for manufacturers seeking aesthetic appeal and functional performance in decorative anodizing.

Partial parameter description of Automatic Anodizing Production Line:

1-7: Tank 15,17,19, and 21:4 coloring tank

1-7-1 structure:

It is made of stainless steel plate bent and welded with SS304 material, with a thickness of 3mm, which ensures that the tank is not deformed, beautiful, non-leakage, corrosion-resistant and easy to maintain. The bottom of the tank is equipped with side drainage port.

1) Tank size: 800 x 4000 x 1600mm (L x W x H)

2) Reinforcement of the tank: 80*40*4mm square tube made of A3 material is welded

3) The thickness of the insulation layer of the tank is 50mm, and the material is 100K rock wool. The outer plate is 1mm thick and 304# stainless steel plate is covered with rivet

4) A set of stainless steel 304 serpentine steam heating tubes are configured in the tank.

5) Two exhaust hoods are arranged on both sides of the tank and connected to the exhaust main pipe.

1-7-2 piping:

1) Pure water pipe: φ3/4" PVC pipe (with PVC ball valve).

2) Drainage pipe: φ3" PVC pipe (with fittings/spherical valve).

3) Stirring: air stirring (φ3/4" PP pipe)

Material list for Automatic Anodizing Production Line:

For a complete technical solution of Automatic Anodizing Production Line, please contact me. We will customize the design based on your product technical requirements and factory layout.
